| Productnaam: | hydraulische gerolermotor | Materiaal: | Gietijzer |
|---|---|---|---|
| Modelnummer: | BMPH-50-H5-SS | Functies: | Hoge torsie met lage snelheid |
| Verplaatsing: | 50cc | Schacht: | SAE A 6B SPLINE-AS |
| Markeren: | 50cc hydraulische motor SAE A,omloophydraulische motor met vier bouten,hydraulische motor SAEA 6B as |
||

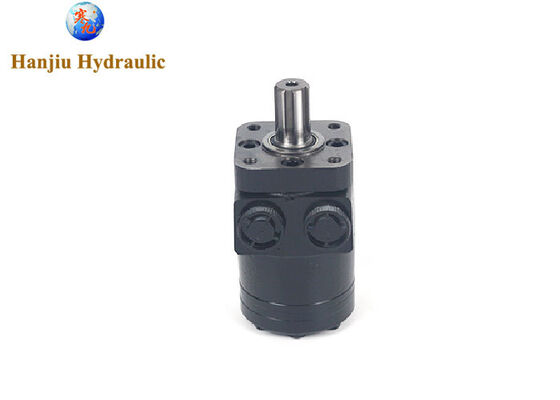

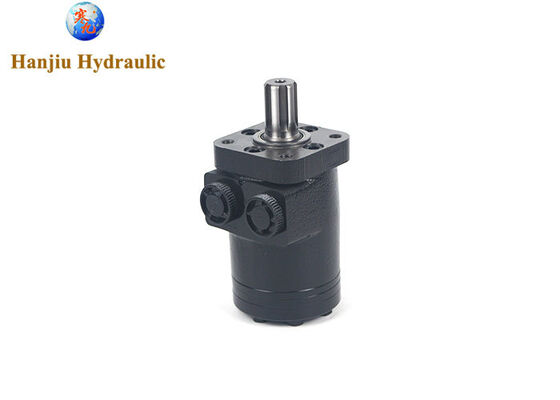

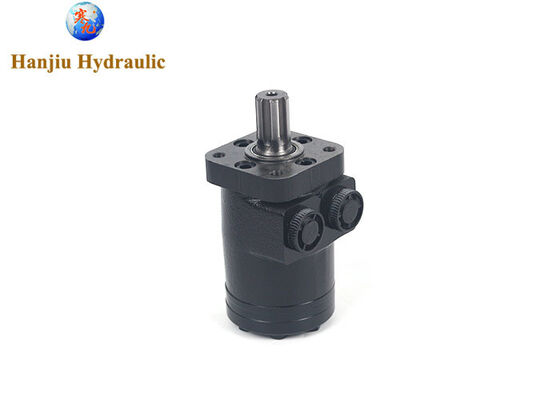

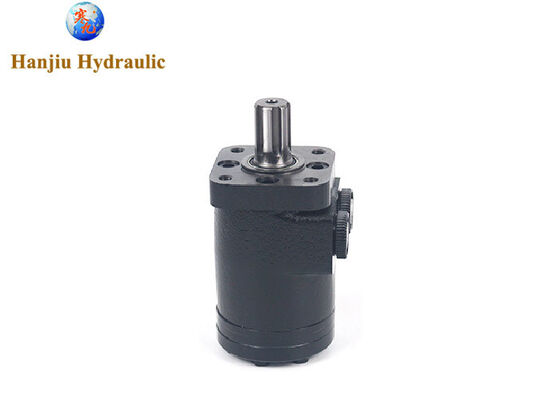

LSHT Hydraulische motor - 50cc - SAE A 4-bolt - SAEA 6B Schacht met 7/8-14 poortgrootte
¢ Productgegevens
modeltype:BMPH-50-H5-S-S
Verplaatsing: 50cc
Flanke:4 Bolt Std: 44.4 [1.75] Dia. X 3.0 [.12] Pilot, .375-16 Montage
schacht:Schacht Ø25.4, gespleten tand SEA 6B
de draadgaten:7/8-14 O-ring, 7/16-20UNF
Specificatie
| Type | BMPH 36 |
BMPH 50 |
BMPH 80 |
BMPH 100 |
BMPH 125 |
BMPH 160 |
BMPH 200 |
BMPH 250 |
BMPH 315 |
BMPH 400 |
BMPH 500 |
|
| Geometrische verplaatsing (cm3 /rv.) | 36 | 51.7 | 77.7 | 96.2 | 120.2 | 157.2 | 194.5 | 240.3 | 314.5 | 389.5 | 486.5 | |
| Max. snelheid (rpm) | Cont. | 1500 | 1150 | 770 | 615 | 490 | 383 | 310 | 250 | 192 | 155 | 120 |
| Het is int. | 1650 | 1450 | 960 | 770 | 615 | 475 | 385 | 310 | 240 | 190 | 150 | |
| Max. koppel (N·m) | Cont. | 55 | 100 | 146 | 182 | 236 | 302 | 360 | 380 | 375 | 360 | 385 |
| Het is int. | 76 | 128 | 186 | 227 | 290 | 370 | 440 | 460 | 555 | 525 | 560 | |
| Peak. | 96 | 148 | 218 | 264 | 360 | 434 | 540 | 550 | 650 | 680 | 680 | |
| Max. vermogen (kW) | Cont. | 8 | 10 | 10 | 11 | 10 | 10 | 10 | 8.5 | 7 | 6 | 5 |
| Het is int. | 11.5 | 12 | 12 | 13 | 12 | 12 | 12 | 10.5 | 8.5 | 7 | 6 | |
| Maximale drukdaling (MPa) | Cont. | 12.5 | 14 | 14 | 14 | 14 | 14 | 14 | 11 | 9 | 7 | 6 |
| Het is int. | 16.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 14 | 14 | 10.5 | 9 | |
| Peak. | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 18 | 16 | 14 | 12 | |
| Maximale doorstroming (L/min) | Cont. | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Het is int. | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Gewicht (kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 7 | 6.9 | 7.4 | 8 | |
![]()
![]()
Andere soorten, u kunt kiezen uit de ordercode
![]()
