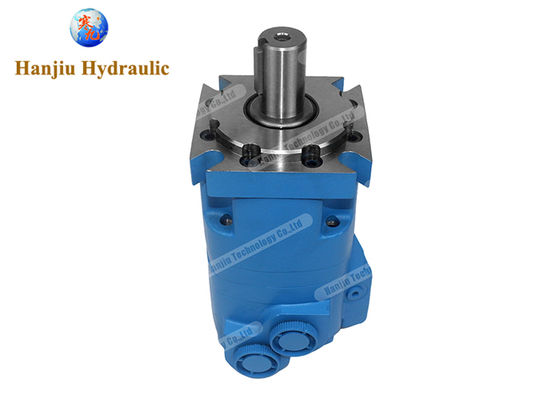

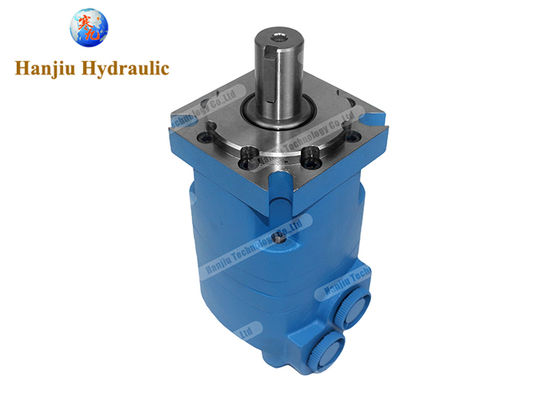

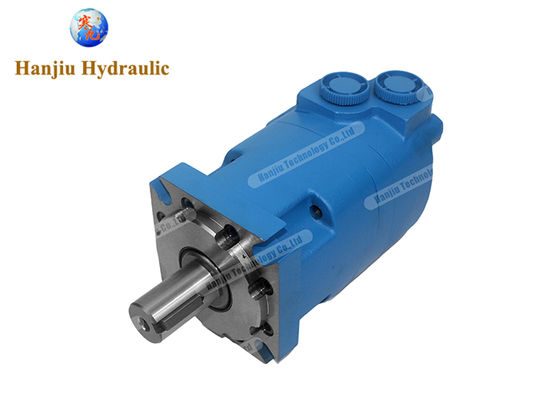

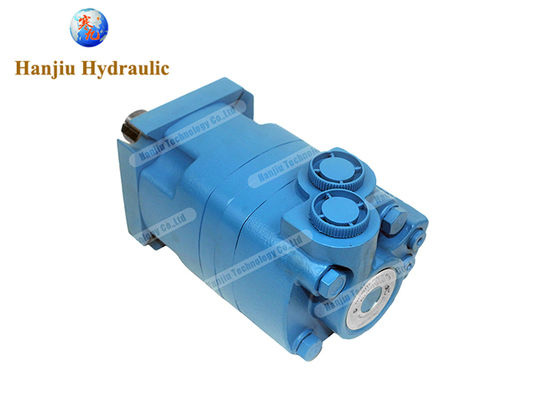

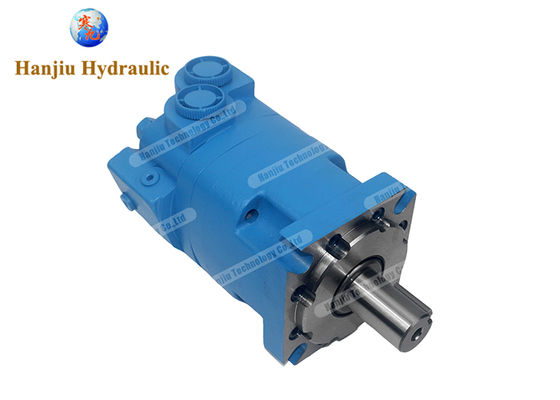

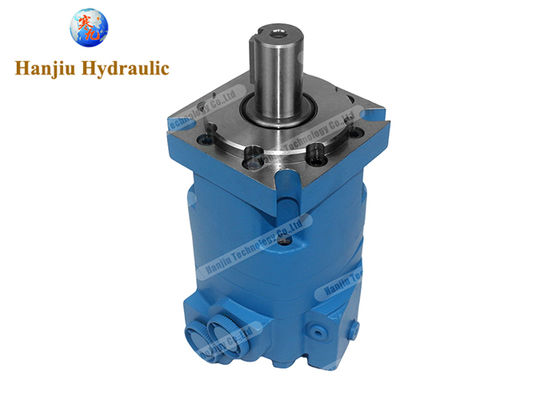

Modle No.: BMK4-130
Hydraulic Motor replace Eaton Char-lynn 109-xx with 4 hole mounting flange, shaft 31.75mm
Key parameters:
| TYPE |
BMK4
160
|
BMK4
200
|
BMK4
250
|
BMK4
315
|
BMK4
400
|
BMK4
500
|
| Displacement(ml/r) |
159.2 |
195.6 |
246.1 |
311.6 |
391.3 |
490.8 |
| Max.speed(rpm) |
cont.
|
560 |
440 |
300 |
234 |
188 |
155 |
| int. |
670 |
535 |
450 |
351 |
282 |
232 |
Max.Pressure.Drop(Mpa) |
cont. |
20 |
20
|
20 |
20 |
20 |
20 |
| int. |
30 |
30 |
30 |
30 |
30 |
27.5 |
| peak. |
30 |
30 |
30 |
30 |
30 |
30 |
| Max.Torque(N.m) |
cont. |
450 |
565 |
710 |
920 |
1160 |
1445 |
| int. |
680 |
855 |
1080 |
1325 |
1625 |
1880 |
| Max.Flow(cont.)(L/min) |
cont. |
95 |
95 |
150 |
150 |
150 |
150 |
| int. |
115 |
115 |
205 |
225 |
225 |
225 |
| Weight(kg) |
26.3 |
26.5 |
26.8 |
27.3 |
28 |
28.8 |
Short introduction:
BMK4-130 standard 4-hole flange hydraulic motor is a small-to-medium displacement cycloidal hydraulic motor with a displacement of 130 mL/rev. It adopts a universal 4-hole flange mounting structure and is suitable for medium-load and continuously operating hydraulic drive systems. This motor is known for its compact structure, stable performance and high cost-effectiveness. It is one of the common power components in light mechanical equipment.
Technical features:
Medium displacement, stable output: BMK4-130 has good speed control ability and is suitable for medium and low speed output under continuous working conditions.
Standard 4-hole flange installation: The installation method is universal, easy to quickly replace and maintain, and suitable for a variety of industrial equipment.
High mechanical efficiency: The optimized cycloidal structure is adopted to reduce internal friction loss and improve overall energy efficiency.
Good low-speed performance: Even at low speeds, it can maintain stable output to meet the needs of precision control.
Compact structure and light weight: It is very suitable for equipment with limited installation space, reducing the weight and energy consumption of the whole machine.
Reliable and durable: High-quality sealing system and bearing structure ensure long-term stable operation under medium-pressure conditions.
Application areas:
BMK4-130 motors are widely used in agricultural machinery, engineering equipment, sanitation vehicles, small industrial machinery and hydraulic systems. Common applications include: hydraulic winches, small crawler drive systems, drive units in agricultural planting machinery, sweeper brush drives, and other occasions requiring medium torque output.
Summary:
BMK4-130 standard 4-hole flange hydraulic motors are ideal for light and medium hydraulic drive systems with their stable performance, simple installation and excellent cost performance. Whether in industrial automation, agricultural operations or urban service equipment, they can provide efficient and reliable power support.
We have more similar hydraulic motors compatible with Eaton Charlynn 4000 series:
| Part Number |
Displacement cm3/rev (in3/rev) |
| 109-1115-006 |
130 (7.9) |
| 109-1116-006 |
160 (9.9) |
| 109-1117-006 |
205 (12.5) |
| 109-1118-006 |
245 (15) |
| 109-1119-006 |
310 (19) |
| 109-1120-006 |
395 (24) |
We have more hydraulic motors compatible with Eaton Charlynn H,S,T, 2000, 4000, 6000, 10000 series
